380hp Beiben 6x6 all wheel drive log truck

Qingdao Yalun Import and Export Co., Ltd
Contact Now

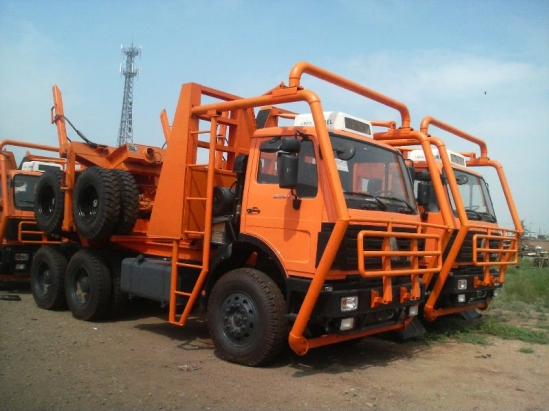

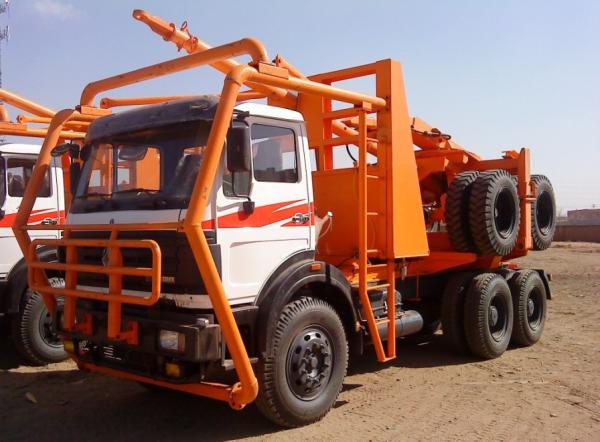

380hp Beiben 6x6 all wheel drive log truck

Brand Name : Beiben

Model Number : 2638

Certification : ISO CCC

Place of Origin : China

MOQ : 1 unit

Price : USD 50000-70000

Payment Terms : L/C, T/T

Supply Ability : 100 units

Delivery Time : 50 days

Packaging Details : shipping by bulk or roro

Load capacity : 50tons

Engine : Weichai

Tire : 1200R24

Color : optional

Contact Now

BEIBEN ALL WHEEL DRIVE LOG TRUCK

ONE YEAR WARRANTY

PROFESSIONAL SALES, SHIPPING AND AFTER SALE SERVICE



Wheel base (mm) 3800+1450

Curb weight (kg) 9200

Max Speed:(Km/h) ≥90

  Model WD615.38, water-cooled, four strokes, 6
  cylinders straight in line, turbocharged

  Fuel type diesel

  Min rate of 198
Engine consuming
fuel(g/(kW.h))
  Rated Power /
  rotating 280Kw/2400rpm
  (KW/(r/min)
  Emission EURO

  Maximum Torque /
  rotating 1460Nm/1400-1600rpm
  speed(N.m/(r/min))
  Displacement(ml) 9726



Fuel tank capacity (L) 400

Clutch Model #430, Single dry frictional disc, Hydraulic
  boosting

  Model 12JS200T, mechanical type,12 Forward
  speed gear, 2 reverse gear
Gearbox
Gear ratio 12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/

  1.28/1.00/0.78 R1: 11.56 R2: 2.59


  Service brake Brake gap can be adjusted automatically,
  double circulation air brake system
Brake system Assistant Engine exhaust brake
brake

  Park brake Potential springs pressing on middle and rear
  wheels

Steering system Model ZF8098, whole circulation in ball type,
hydraulic boosting

  Front Non-free standing leaf spring, telescopic
Suspension Suspension shock absorber with stabilizer bar suspension
system Rear Non-free standing stabilization
  Suspension spring, stabilization suspension
Frame Fish belly shape, variable width, variable sections

Cross section 317×70×8.5+7+8
dimension of
frame(mm)
Front axle Double-shoe pneumatic brake, driving and steering.
(Benz
AL7/1DS-7/5.263
Technology)
Middle and Rear Double-shoe pneumatic brake, ductile casting casing,
axle with hub redactor, double reduction driving axle
(Benz Middle axle: HD7/016DGS-13/5.263
Technology) Rear axle: HL7/015DS-13/5.263

Tire 12.00-24, 11pcs (one spare tire)

Electrical Battery   2X12V/135Ah
Generator   28V-35A
system
Starter   5.4Kw/24V

  Short cab,
Cab Full steel skeleton structure, covered with double layer steel
plate;

  Can be tipped forwardly;


Interior trimming:



Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. brake water spray control swift.

Exterior trimming:



Protection frame and bumper, single layer road bumper, three steps, with new mirror. with outer sun visor

Color White with bule strip, blue frame.



380hp Beiben 6x6 all wheel drive log truck



Welcome to contact. We will be available 24 hours to provide you considerate service.

Sales Manager: Eric

Tel/whatsapp: 008615066278170

Email: yalunexport@hotmail.com

www.yalunmachinery.com

Qingdao Yalun Machinery Co., Ltd
